MORE WORKSPACE

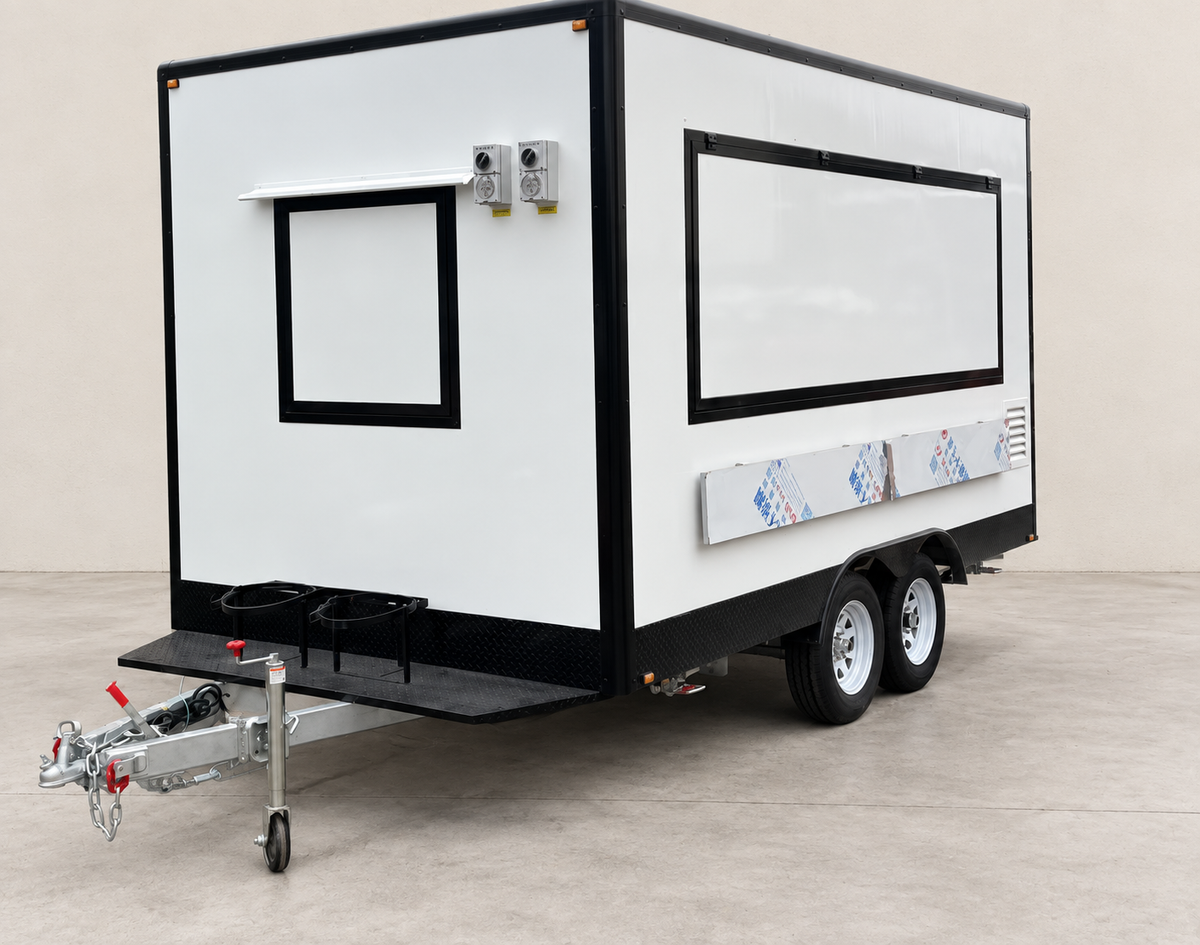

4m Food Trailer
More internal length, larger cold storage and 100 L water tanks for a more extensive food-service fit-out. Explore the 4m format for takeaway, coffee with food, market trading and catering, with suitability checked against your menu and equipment.
Package highlights: 100 L fresh and waste tanks, 1900 mm rangehood, workbench refrigerator and freezer, and a three-sink washing area. Final inclusions are itemised in your quote.
AUD $26,900 + GSTAUD $29,590 including GST
Get a 4m Trailer QuoteShare your menu and equipment list so we can discuss a suitable configuration.

Key specifications
| Model size label | 4m |
|---|---|
| Body dimensions (L × W × H) | 4000 × 2160 × 2600 mm (L × W × H; external dimensions in the configuration sheet) |
| Internal dimensions (L × W × H) | 3920 × 2080 × 2100 mm (L × W × H) |
| Construction | Metal composite board; plywood and fibreglass floor |
| Service openings | 1 service window and 1 small window |
| Water storage | 100 L fresh water / 100 L waste water |
| Sink layout | 2 large + 1 small |
| Rangehood | 1900 mm |
| Workbench freezer | 1500 × 600 × 700 mm |
| Workbench refrigerator | 1800 × 600 × 650 mm |
| Power connections | 2 × 15 A waterproof inlets |
| Socket outlets | 8 × 10 A Australian-type |
| Tyres | 4 × 165R13 |
The 4m model name corresponds to the 4000 mm external length listed in the configuration sheet. This is not a verified overall towing length. Overall drawbar-to-rear dimensions, tare weight, ATM and payload must be confirmed for the completed trailer before choosing a tow vehicle.
Inclusions & optional extras
Standard inclusions
Body, service openings and lighting
- Metal composite board body with plywood and fibreglass floor.
- 201-grade stainless-steel display board.
- One service window, one small window and LED tube lighting.
Sinks, water and hot water
- Two large sinks and one small sink, two taps and three splash partitions.
- 100 L stainless-steel fresh-water tank and 100 L stainless-steel waste-water tank.
- Water pump and inverter.
- 1.5 kW instantaneous kitchen water heater.
Stainless-steel storage and work areas
- 1400 mm cabinet and 3900 mm main shelf in 201-grade stainless steel.
- 1000 mm shelf beneath the rangehood.
- Cash drawer, stainless-steel soap dispenser and tissue holder.
Refrigeration and ventilation
- Workbench freezer: 1500 × 600 × 700 mm; fan cooling; stated temperature range 0 to −18 °C.
- Workbench refrigerator: 1800 × 600 × 650 mm; direct cooling; stated temperature range 0 to 8 °C.
- 1900 mm rangehood and one firewall set.
Electrical fittings
- Two distribution boards with dual circuits.
- Two waterproof 15 A external power connections.
- Eight 10 A Australian-type socket outlets.
- Final supply requirements and usable appliance load must be confirmed by the licensed electrician.
Chassis and exterior
- Galvanised-steel chassis and traction frame.
- Mechanical collision brake system, torsion running gear and four 165R13 tyres.
- Jockey wheel, four body support brackets and retractable access step.
- Two gas-cylinder brackets; cylinders and gas installation are not included.
- Turn, brake, reverse and clearance lights, plus taillight connector.
Optional extras
Not included in the documented package
- Generator and gas pipework.
- Gas appliance connection and cooking appliances unless separately itemised.
- Additional site-specific or authority-required modifications unless listed in your quotation.
Request a separate quote
- Changes to the layout, equipment, storage or preparation areas.
- Colours, signage and branding requirements.
- Delivery and any additional installation work.
We confirm what is possible, the cost and timing before you approve a change.
Photographs and concept visuals do not define the package. Only the inclusions in your written quotation form part of your order.
Inside the 4m trailer


Potential business uses
A larger option to discuss for takeaway menus, market trading, coffee with food and catering. The 3920 mm internal length provides 1000 mm more internal length than the 3m model, with larger refrigeration units and water tanks in this package.
Suitability depends on your menu, equipment, site services and approved layout.
Customisation Options
Plan the trailer around your menu, appliances and service flow. Discuss preparation and serving areas, storage, equipment positions, finishes, colours and branding.
Power requirements, service-window changes and equipment substitutions need a confirmed design and itemised quote before ordering.
Ordering information
Availability & lead times
Stock arrives every 2–4 weeks; availability varies by model. If your selected trailer is not in stock, reserve it with a $1,000 non-refundable deposit, except where a refund is required by law.
Customised trailers usually take 6–12 weeks. Pay $1,000 before design work begins, then top up to 50% of the total trailer cost after final drawing approval. The $1,000 counts towards that 50%. These payments are non-refundable except where a refund is required by law. The remaining 50% is payable before delivery.
We confirm the expected schedule and payment amounts in writing. These terms do not limit your Australian Consumer Law rights.
Delivery & collection
An in-stock trailer may be delivered in as little as 2 business days, subject to location and delivery arrangements. Incoming-stock delivery is arranged once the trailer arrives and the balance is paid.
Provide your postcode so we can confirm delivery costs, access requirements or collection arrangements. All timeframes are estimates.
Documentation & warranty
Final registration, electrical, gas, fire-safety and food-premises requirements depend on the completed configuration and relevant authorities or licensed trades. No blanket approval is implied.
Request the applicable installation documents and written warranty terms for the trailer and included equipment with your quote.
