COMPACT FORMAT

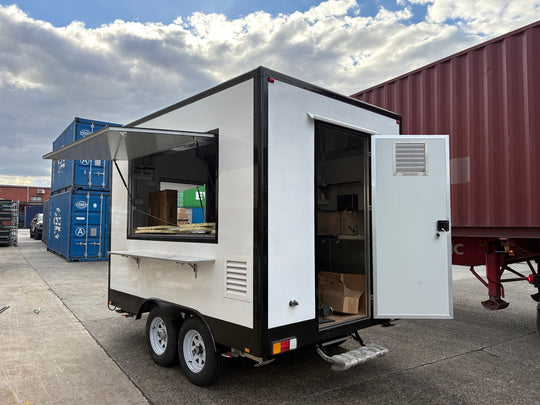

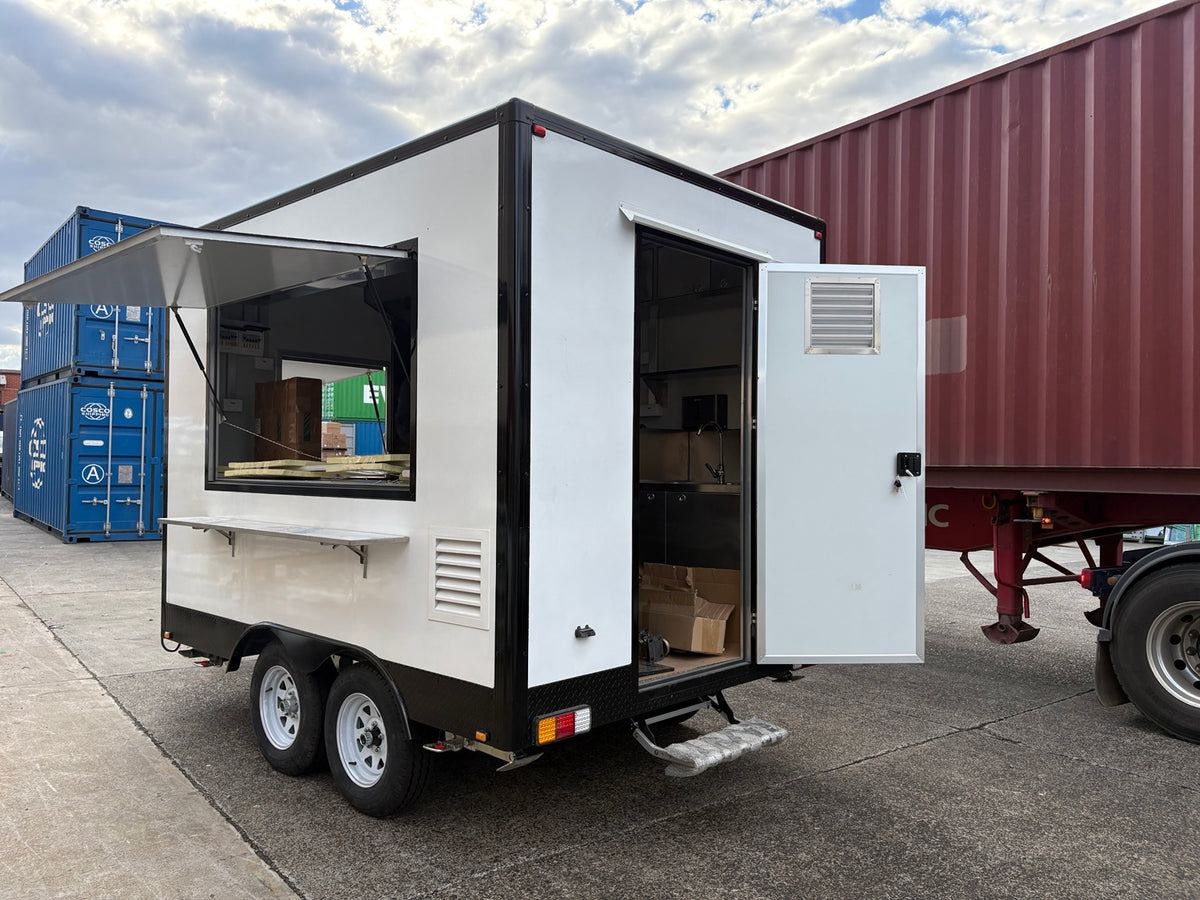

3m Food Trailer

A compact food trailer package with stainless-steel work areas, washing facilities, hot water and under-bench refrigeration. Explore the 3m format for coffee, desserts and focused menus, with suitability checked against your equipment and layout.

Package highlights: 50 L fresh and waste tanks, 1500 mm rangehood, workbench refrigerator and freezer, and a three-sink washing area. Final inclusions are itemised in your quote.

AUD $21,900 + GSTAUD $24,090 including GST

Get a 3m Trailer Quote

Share your menu and equipment list so we can discuss a suitable configuration.

Key specifications

3m Food Trailer — Key specifications
Model size label3m
Body dimensions (L × W × H)3000 × 2160 × 2600 mm (L × W × H; external dimensions in the configuration sheet)
Internal dimensions (L × W × H)2920 × 2080 × 2100 mm (L × W × H)
ConstructionMetal composite board; plywood and fibreglass floor
Service openings1 service window and 1 small window
Water storage50 L fresh water / 50 L waste water
Sink layout1 large + 2 small
Rangehood1500 mm
Workbench freezer1200 × 600 × 700 mm
Workbench refrigerator1200 × 600 × 650 mm
Power connections2 waterproof inlets; rating to be confirmed
Socket outlets8 × 10 A Australian-type
Tyres4 × 165R13

The 3m model name corresponds to the 3000 mm external length listed in the configuration sheet. This is not a verified overall towing length. Overall drawbar-to-rear dimensions, tare weight, ATM and payload must be confirmed for the completed trailer before choosing a tow vehicle.

Inclusions & optional extras

Standard inclusions

Body, service openings and lighting

  • Metal composite board body with plywood and fibreglass floor.
  • 201-grade stainless-steel display board.
  • One service window, one small window and LED tube lighting.

Sinks, water and hot water

  • One large sink and two small sinks, two taps and three splash partitions.
  • 50 L fresh-water tank and 50 L stainless-steel waste-water tank.
  • Water pump and inverter.
  • Instantaneous kitchen water heater.

Stainless-steel storage and work areas

  • 1500 mm cabinet and 3000 mm main shelf in 201-grade stainless steel.
  • 1000 mm shelf beneath the rangehood.
  • Cash drawer, stainless-steel soap dispenser and tissue holder.

Refrigeration and ventilation

  • Workbench freezer: 1200 × 600 × 700 mm; fan cooling; stated temperature range 0 to −18 °C.
  • Workbench refrigerator: 1200 × 600 × 650 mm; direct cooling; stated temperature range 0 to 8 °C.
  • 1500 mm rangehood and one firewall set.

Electrical fittings

  • Dual-circuit distribution box.
  • Two waterproof external power connections; inlet rating to be confirmed.
  • Eight 10 A Australian-type socket outlets.
  • Final supply requirements and usable appliance load must be confirmed by the licensed electrician.

Chassis and exterior

  • Galvanised-steel chassis and traction frame.
  • Mechanical collision brake system, torsion running gear and four 165R13 tyres.
  • Jockey wheel, body support brackets and retractable access step.
  • Two gas-cylinder brackets; cylinders and gas installation are not included.
  • Turn, brake, reverse and clearance lights, plus taillight connector.

Optional extras

Not included in the documented package

  • Generator and gas pipework.
  • Gas appliance connection and cooking appliances unless separately itemised.
  • Additional site-specific or authority-required modifications unless listed in your quotation.

Request a separate quote

  • Changes to the layout, equipment, storage or preparation areas.
  • Colours, signage and branding requirements.
  • Delivery and any additional installation work.

We confirm what is possible, the cost and timing before you approve a change.

Photographs and concept visuals do not define the package. Only the inclusions in your written quotation form part of your order.

Inside the 3m trailer

3m trailer interior overview, digitally retouched supplied photograph
Digitally retouched supplied 3m photo. Equipment shown relates to this photographed configuration; quoted inclusions may differ.
3m trailer sink area, digitally retouched supplied photograph
Digitally retouched supplied 3m photo. Equipment shown relates to this photographed configuration; quoted inclusions may differ.

Potential business uses

A compact option to discuss for coffee, desserts, market stalls and focused takeaway menus. Its 2920 mm internal length combines washing, preparation and under-bench cold storage in a smaller format.

Suitability depends on your menu, equipment, site services and approved layout.

Customisation Options

Plan the trailer around your menu, appliances and service flow. Discuss preparation and serving areas, storage, equipment positions, finishes, colours and branding.

Power requirements, service-window changes and equipment substitutions need a confirmed design and itemised quote before ordering.

Ordering information

Availability & lead times

Stock arrives every 2–4 weeks; availability varies by model. If your selected trailer is not in stock, reserve it with a $1,000 non-refundable deposit, except where a refund is required by law.

Customised trailers usually take 6–12 weeks. Pay $1,000 before design work begins, then top up to 50% of the total trailer cost after final drawing approval. The $1,000 counts towards that 50%. These payments are non-refundable except where a refund is required by law. The remaining 50% is payable before delivery.

We confirm the expected schedule and payment amounts in writing. These terms do not limit your Australian Consumer Law rights.

Delivery & collection

An in-stock trailer may be delivered in as little as 2 business days, subject to location and delivery arrangements. Incoming-stock delivery is arranged once the trailer arrives and the balance is paid.

Provide your postcode so we can confirm delivery costs, access requirements or collection arrangements. All timeframes are estimates.

Documentation & warranty

Final registration, electrical, gas, fire-safety and food-premises requirements depend on the completed configuration and relevant authorities or licensed trades. No blanket approval is implied.

Request the applicable installation documents and written warranty terms for the trailer and included equipment with your quote.
